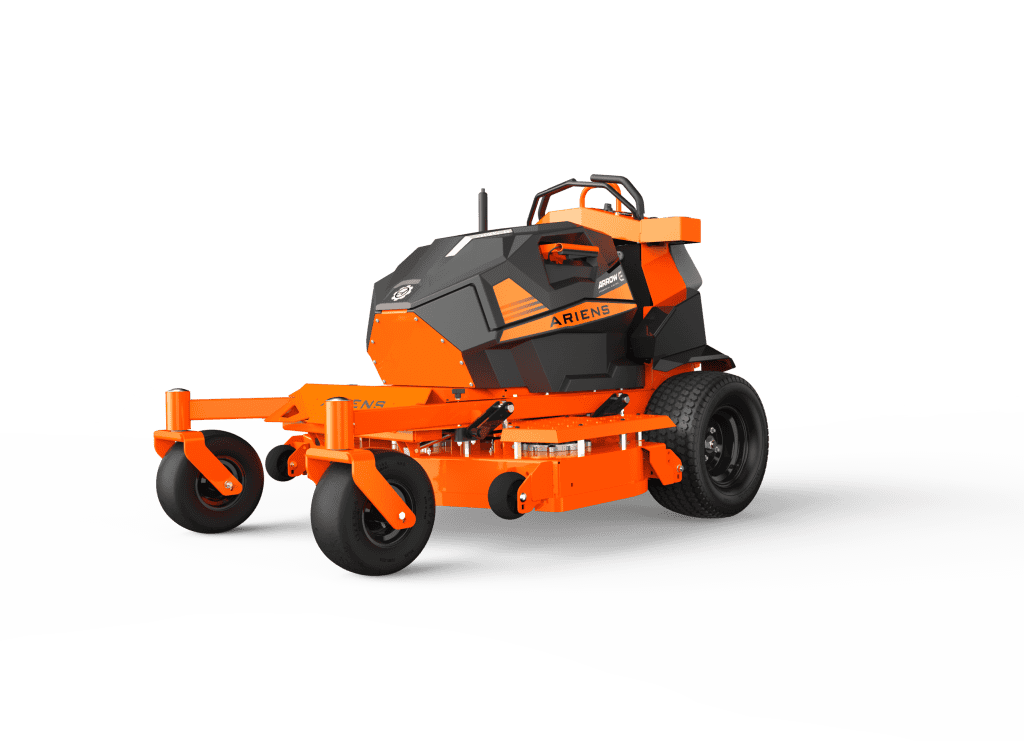

ARROW E 52R
Stand-on battery mower with high area coverage and zero emissions
Stand-on mowers are comfortable and fast, but particularly compact, agile and spacesaving. Your back and muscles will thank you for the upright working position.
The ARROW E 52R from Ariens is a fully commercial, battery-powered zero-turn mower. Equipped with a 132 cm (52″) long cutting deck with rear discharge, it is designed for use in areas where noise and carbon emissions are restricted.
- Powered by four interchangeable FusionCore lithium-ion 56V DC, 4kWh batteries
- Features patent-pending spindle technology, designed to absorb impact with minimal damage to spindles
- QuickSwap battery system enables all-day cutting (dependent on cutting conditions)
- Charge time of 5.3 – 12 hours (depending on charger)
- Features a 132cm (52″) fabricated rear discharge deck constructed of strong 4.5mm steel
- Intuitive controls
- Folding operator platform for maximum versatility
- ECO mode – increases battery life
- LED interface displays important information
- Foot-assisted cutter deck adjustment
- 5-year or 1500 hours warranty/ 3-year battery warranty
*Photos and illustrations are a representation of the product, actual product may differ
Einsätze
Features & Benefits
4 individual 56V battery packs of 4 kWh each = 16 kWh total capacity. Premium Panasonic Li-NMC cells.
The ARROW E uses the same four 56V battery packs as the ZENITH E. You can mow at full power even with just two batteries. Even a single battery is sufficient for transporting the machine. Fast charging of the four batteries from 0-100% in just 5:20 hours.
The high-performance spindle motors of the knives are equipped with a slip clutch. In the event of a collision with a foreign object, it allows the blade to "slip" and thus protect the motor from damage. If the worst comes to the worst, the cutter shafts and lower bearings can be replaced.
Quality has its weight. The solid mowing deck of the ARROW E is welded from 4.5 mm thick sheet steel. The deck height is adjusted smoothly using a combined system of foot pedal and manual lift.
The color LED display keeps you constantly up to date.
• Charge status of all batteries
• Operating modes.
• Operating hours counter
• System diagnostics
• Fault messages
No external device is required for diagnostics.
The ARROW E has an ECO mode switch. The highest blade speed is not required when the amount of clippings is low or the driving speed is slow. In this case, use the ECO mode to reduce the blade speed.
The spring-mounted driver's platform can be folded upwards for transportation. It can also be used when working under low-hanging branches or when driving on slopes of up to 20°. This turns the ARROW E into a walk-behind mower in no time. By the way: No suspension system in the world is as good as human legs. This is a major advantage of stand-on mowers for the health of the driver.
All functions of the machine are clearly visible and within easy reach of the operator. The maximum travel speed can be limited via a quick action mechanism with magnetic plug. Also features electric parking brake and two driving speed levels.
Technical Data
Accessories
![](https://www.ariens.eu/uk/wp-content/uploads/sites/5/2024/05/ariens-zenith-e-battery-zero-turn-accessories-lithium-ion-battery-768x555-1-300x217.webp)
56V battery kit (single battery)
Extend your cutting time capability with an additional Lithium-Ion QuickSwap 4 kWh battery.
![](https://www.ariens.eu/uk/wp-content/uploads/sites/5/2024/05/ariens-zenith-e-battery-zero-turn-accessories-offboard-charger-768x555-1-300x217.webp)
Off board charger kit
Charge up to four additional batteries outside of the machine. Charging time 4 batteries 0-100%: 12 hours. Option to upgrade to Fast Charger.
![](https://www.ariens.eu/uk/wp-content/uploads/sites/5/2024/05/ariens-zenith-e-battery-zero-turn-accessories-fast-charger-kit-768x555-1-300x217.webp)
Fast charger w/y harness kit
Additional charger. Charges the four batteries in the machine in just 5.3 hours.
Applications
Service providers
Time is money for a service provider. Modern zero-turn mowers are therefore particularly popular with them. Time savings of up to 40 % come into their own here. Daily changing job sites and high annual operating times place demands on the material. The Ariens APEX and ARROW zero-turn models bring momentum and speed to the daily work of lawn care service providers.
Municipalities & building yards
User comfort for long mowing jobs in public spaces. Efficient work that is fun and enjoyable. The Ariens models ZENITH, ZENITH E, ARROW and ARROW E zero-turn mowers are made for long and frequent mowing intervals on large areas. Perfect cut and durability come as standard. Suspended wheel forks, optimum seating comfort or ergonomic, upright driving position on the ARROW models protect the user and increase their well-being.
